More Juice, No Excuse
The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.
Modellbeschreibung

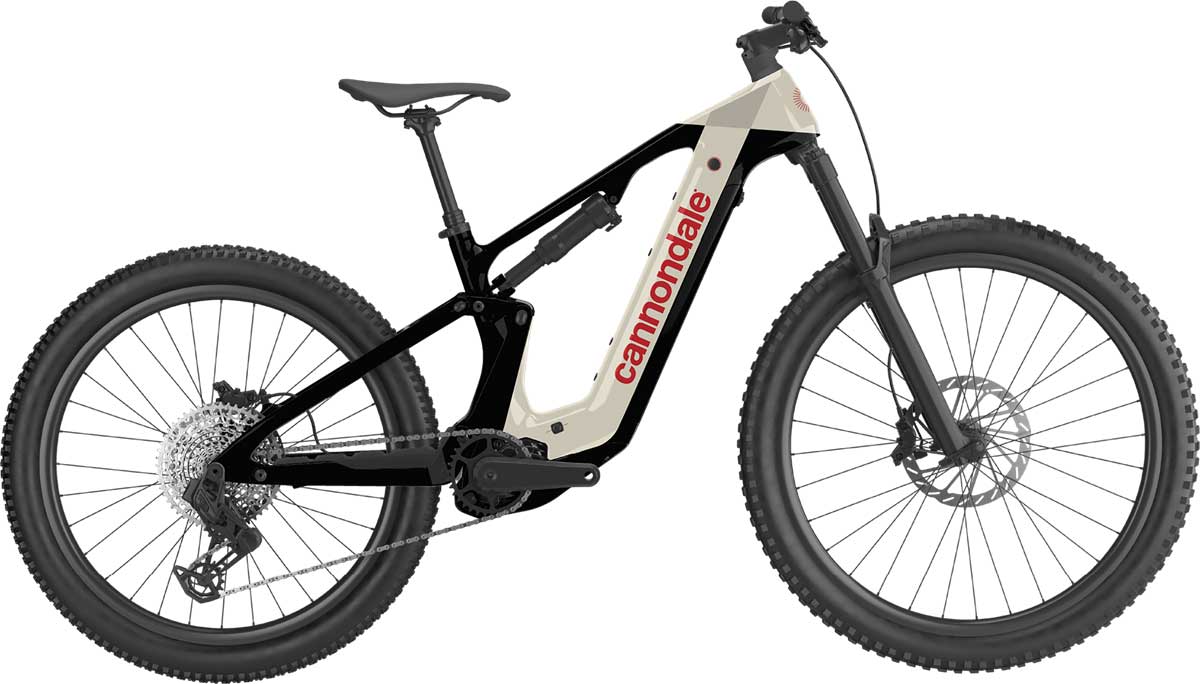

A masterclass in capability. The Moterra 2 features a lightweight, full carbon frame with 150mm travel and a hard-charging 160mm RockShox Zeb Select fork for pinpoint handling. Shimano's advanced Deore Di2 electronic drivetrain and Magura Louise Elite brakes combine with Bosch’s most powerful CX motor and 800Wh battery to extend every ride beyond expectation. Agile, composed, and ever-ready to push the limits of exploration.
Das, wofür es gemacht ist
Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild
Highlights
- A lightweight carbon fiber frame with Proportional Response size-specific suspension, tuned for specifically for the air shock and 29” wheels
- Bosch's most powerful system – the Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
- Smooth and rugged RockShox suspension – 160mm ZEB Select 38 fork and Deluxe Select+ air shock
- Precise electronic shifting from Shimano's workhorse Deore Di2 11-speed group
- Powerful, controllable stopping from Magura’s Louise Elite 4-piston stoppers with 203mm rotors
- Light and durable WTB ST i30 Tough rims, 30mm inner width, with Shimano hubs and Continental Kryptotal tires
Details
Rahmenset
-
Rahmen
Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible
-
Gabel
RockShox ZEB Select, 160mm, Charger RC, DebonAir+, 15x110mm Maxle, 44mm offset
-
Steuersatz
Acros ICR, 1.5" to 1.8", sealed bearings
-
Rear Shock
RockShox Deluxe Select+, DebonAir+, 2-Pos mode adjust, adjustable rebound, 230x62.5mm
E-System
-
Motor
Bosch Performance Line CX
-
Batterie
Bosch PowerTube, 800Wh
-
-
Display
Top Tube System Controller w/ Bosch Kiox 300 & Mini Remote
Antrieb
-
Schaltwerk
Shimano Deore Di2 M6260, 11-speed, (E-System powered)
-
Schalthebel
Shimano Deore Di2 M6250, wireless, 11-speed
-
Kette
Shimano LG500, LinkGlide, 11-speed
-
Kurbel
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
-
Kassette
Shimano CUES LG700, LinkGlide, 11-50, 11-speed
Bremsen
-
Bremsen
Magura Louise Elite 4-piston hydraulic disc, 203/203mm MDR-S rotors, 2.0mm
-
Bremshebel
Magura Louise Elite hydraulic disc
Laufräder
-
Felgen
WTB ST i30 Tough TCS, 30mm inner width, 32h, tubeless ready
-
Speichen
DT Swiss Champion 2.0
-
-
-
Naben
(F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock
-
Reifen
(F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable
Komponenten
-
Lenker
Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
-
Vorbau
Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0°
-
Griffe
Cannondale TaperRidge
-
Sattel
Fizik Terra Ridon X5, 145mm, Wingflex, S-Alloy Mobius rail
-
Sattelstütze
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Extra
-
Extra 1
Tubeless Valves, Bosch PowerMore range extender compatible
BITTE BEACHTE, DASS ES AUFGRUND VON VERFÜGBARKEITEN SOWIE ANDEREN FAKTOREN ZU VORAB NICHT ANGEKÜNDIGTEN ÄNDERUNGEN KOMMEN KANN .
