More Juice, No Excuse
The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.
Modellbeschreibung

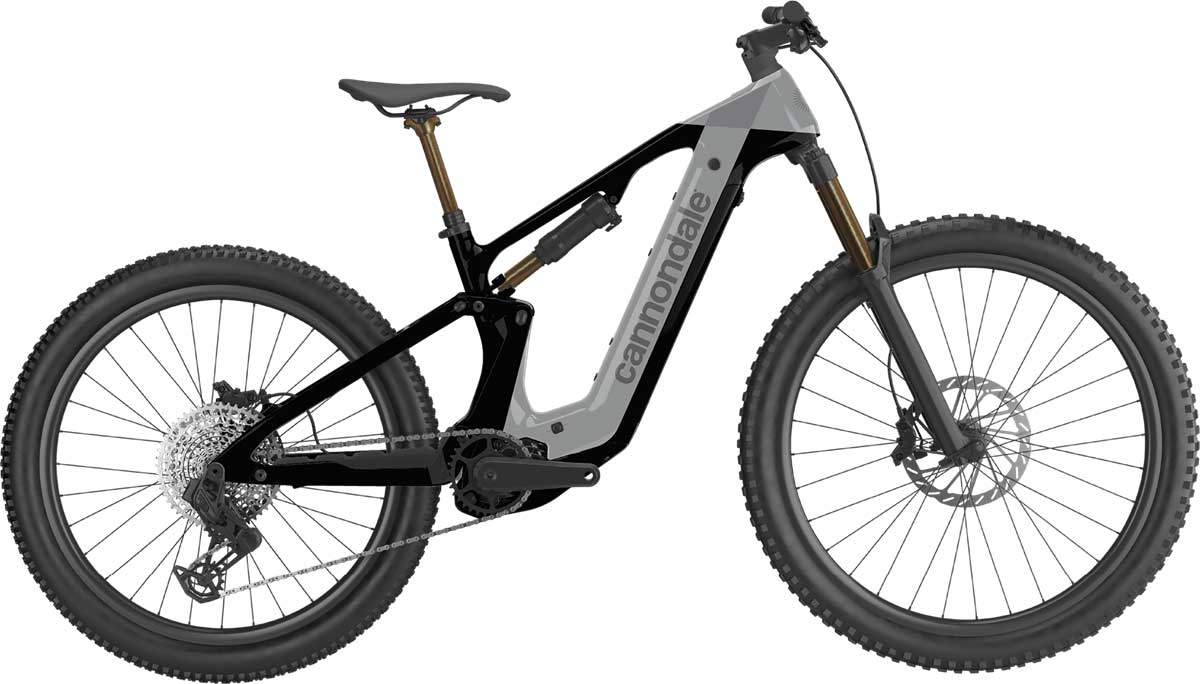

Moterra 1 balances brute strength with trail-savvy finesse. Featuring a lightweight, full carbon frame and 160/150mm of travel, it’s built for those who demand big power, silky smooth delivery, and absolute control. A Bosch CX motor with an 800Wh battery gives you the juice for even the biggest missions. A Kiox 500 display integrated into the stem keeps you connected, while the top-end Fox 38 Factory fork and Float X Factory shock soak up every bump. Shimano XT Di2 electronic shifting, Magura Gustav Elite brakes, and robust Reserve 30|HD AL wheels bring top-tier precision, making it the perfect blend of speed, style, and capability.
Das, wofür es gemacht ist
Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild
Highlights
- A lightweight carbon fiber frame - Proportional Response size-specific suspension, tuned for specifically for the air shock and 29” wheels
- Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
- Top of the line Fox Factory suspension – 160mm Float Factory 38 fork and Float X Factory piggyback shock
- Reserve 30|HD AL Wheelset - 30mm inner width, 370 hubs with durable Ratchet LN internals - Light, rugged & warrantied for life
- High-end Shimano XT Di2 electronic shifting with e*thirteen Helix Core cranks
- Powerful, controllable stopping from Magura’s Gustav Elite 4-piston stoppers with 203mm rotors
Details
Rahmenset
-
Rahmen
Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible
-
Gabel
Fox Float Factory 38, 160mm, GripX2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
-
Steuersatz
Acros ICR, 1.5" to 1.8", sealed bearings
-
Rear Shock
Fox Float X Factory, Kashima, 2 pos adj, EVOL LV, 230x62.5mm
E-System
-
Motor
Bosch Performance Line CX
-
Batterie
Bosch PowerTube, 800Wh
-
-
Display
Top Tube System Controller w/ Bosch Kiox 500 & Mini Remote
Antrieb
-
Schaltwerk
Shimano XT Di2 M8260, 11-speed, (E-System powered)
-
Schalthebel
Shimano XT Di2 M8250, wireless, 11-speed
-
Kette
Shimano LG500, LinkGlide, 11-speed
-
Kurbel
e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
-
Kassette
Shimano CUES LG700, LinkGlide, 11-50, 11-speed
Bremsen
-
Bremsen
Magura Gustav Elite 4-piston hydraulic disc, 203/203mm MDR-S rotors, 2.5mm
-
Bremshebel
Magura Gustav Elite hydraulic disc
Laufräder
-
Felgen
Reserve 30|HD AL, 30mm inner width, tubeless ready
-
-
-
-
Naben
(F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 LN Ratchet System, 12x148mm thru-axle, 6-bolt
-
Reifen
(F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable
Komponenten
-
Lenker
HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
-
Vorbau
Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0°
-
Griffe
Cannondale TaperRidge
-
Sattel
Fizik Terra Ridon X5, 145mm, Wingflex, S-Alloy Mobius rail
-
Sattelstütze
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Extra
-
Extra 1
Fillmore Tubeless Valves, Bosch PowerMore range extender compatible
BITTE BEACHTE, DASS ES AUFGRUND VON VERFÜGBARKEITEN SOWIE ANDEREN FAKTOREN ZU VORAB NICHT ANGEKÜNDIGTEN ÄNDERUNGEN KOMMEN KANN .
