All In to Go All Out

The ultimate gravel race machine, crafted in the LAB for just one thing: taking the lead and staying there. Ok, two things...

Modellbeschreibung

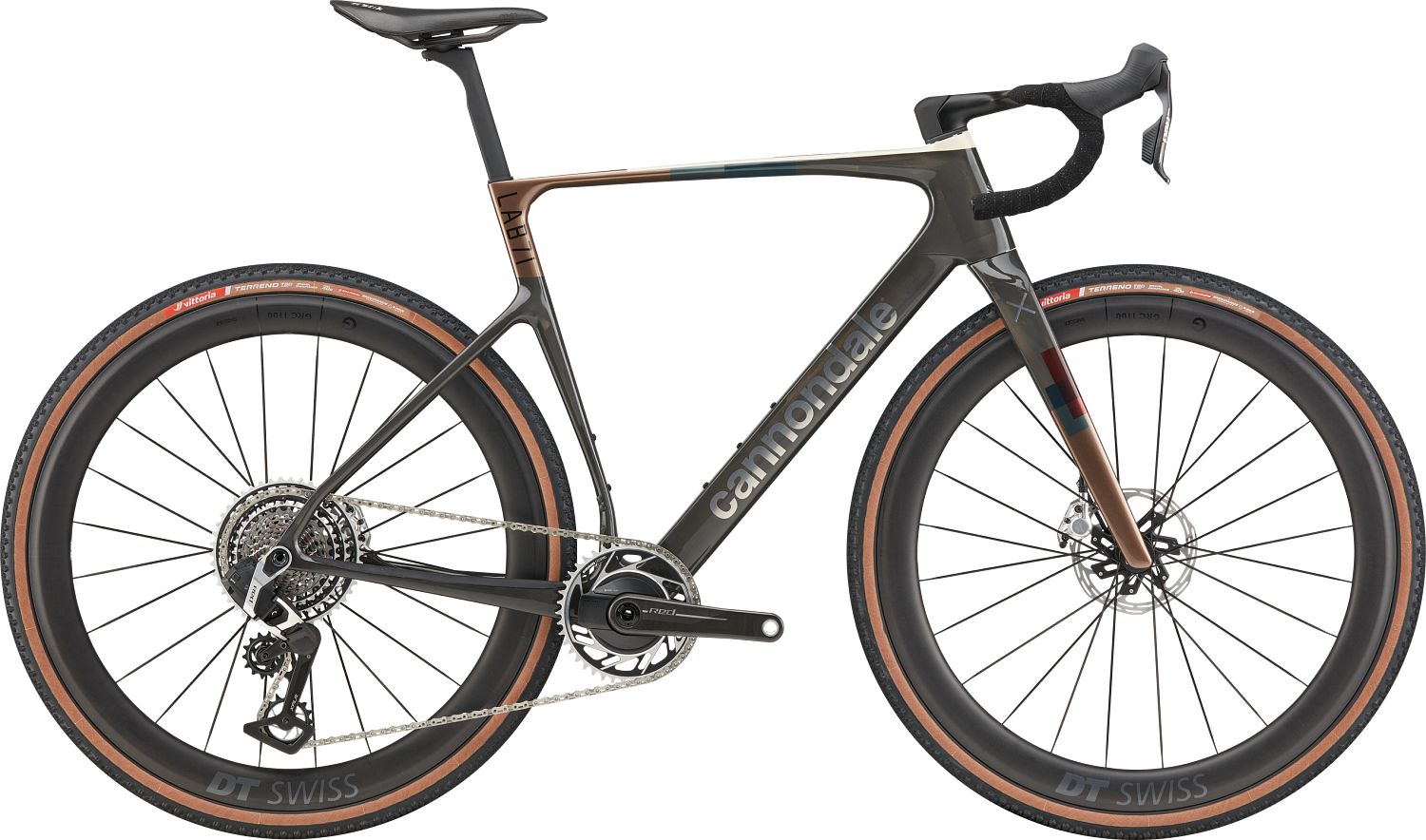

SuperX LAB71 stands at the apex of gravel racing performance. Built on the ultra-lightweight Series 0 carbon frame with Proportional Response construction, this bike transforms raw power into unrelenting speed. SRAM’s RED XPLR AXS drivetrain with integrated power meter delivers razor-sharp shifting, while DT's superb GRC1100 wheels and Vittoria Terreno 700x40c tires provide race-day precision and control. With the aerodynamic SystemBar R-One cockpit and integrated cable routing, this is the complete weapon for those chasing podiums and setting records.

Das, wofür es gemacht ist

Elite gravel racing, KOM hunting, Going like hell

Highlights

  • Ultralight, low-drag, Series 0 carbon frameset, backed by our Lifetime Warranty
  • Our SystemBar R-One – an aerodynamic, full carbon, sleekly integrated bar/stem
  • SRAM’s ultimate gravel groupset - RED XLPR AXS 13-speed, with hydraulic disc brakes and Paceline X rotors
  • SRAM RED AXS XPLR carbon crankset with an integrated power meter, spinning on a super smooth CeramicSpeed DUB BB
  • DT Swiss GRC 1100 DICUT carbon wheels with DT Swiss 180 ceramic bearing hubs. DT's ultimate gravel wheelset
  • Ultralight, yet comfortable, Fizik Vento Antares 00 carbon rail saddle

Spezifikation

Details

  • Plattform
    SuperX
  • Modell
    SuperX LAB71 SMU
  • Modellnummer
    C1707GU SMU

Rahmenset

  • Rahmen
    Lab71 SuperX, Series 0 carbon construction, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
  • Gabel
    Lab71 SuperX, Series 0 carbon construction, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
  • Steuersatz
    Integrated, 1-1/8" - 1.5"

Antrieb

  • Schaltwerk
    SRAM RED XPLR AXS, 13-speed
  • Schalthebel
    SRAM RED AXS, 13-speed
  • Kette
    SRAM RED, 13-speed
  • Kurbel
    SRAM Red XPLR AXS Wide Power Meter, 42T: 165mm (46cm), 170mm (51-54cm), 172.5 (58-58cm), 175mm (61cm)
  • Kassette
    SRAM RED XPLR XG-1391, 10-46, 13-speed
  • Bottom Bracket
    CeramicSpeed BB Alpha for BSA DUB

Bremsen

  • Bremsen
    SRAM RED AXS hydraulic disc, Paceline X 160/160mm centerlock rotors
  • Bremshebel
    SRAM RED AXS hydraulic disc

Laufräder

  • Felgen
    DT Swiss GRC 1100 DICUT, carbon, 24mm inner width, 50mm depth, 24h, tubeless ready
  • Speichen
    (F) DT Swiss Aerolite II, (R) DT Swiss Aerolite II / DT Aero Comp
  • Reifengröße
    40
  • Reifendimension
    700c
  • Naben
    DT Swiss 180 DiCut, SINC ceramic bearings, centerlock, straight pull - (F) 12x100mm, (R) 12x142mm, Ratchet EXP 36
  • Reifen
    Vittoria Terreno T50, 700x40c, tubeless ready

Komponenten

  • Lenker
    Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing: 90x400mm (46-51cm), 100x420mm (54-56cm), 110x420mm (58cm), 120x420mm (61cm)
  • Vorbau
    Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
  • Griffe
    Fizik Tempo Bondcush Soft, 3mm
  • Sattel
    Fizik Vento Antares 00, carbon rail, 140mm
  • Sattelstütze
    Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 15mm offset (51-61cm)

Extra

  • Extra 1
    Tubeless valves, SRAM AXS charger, SystemBar R-One Garmin/Wahoo computer mount

BITTE BEACHTE, DASS ES AUFGRUND VON VERFÜGBARKEITEN SOWIE ANDEREN FAKTOREN ZU VORAB NICHT ANGEKÜNDIGTEN ÄNDERUNGEN KOMMEN KANN .


^
